Start with the right technology and scale with confidence
Discover the best formulation, fast.
Product Overview

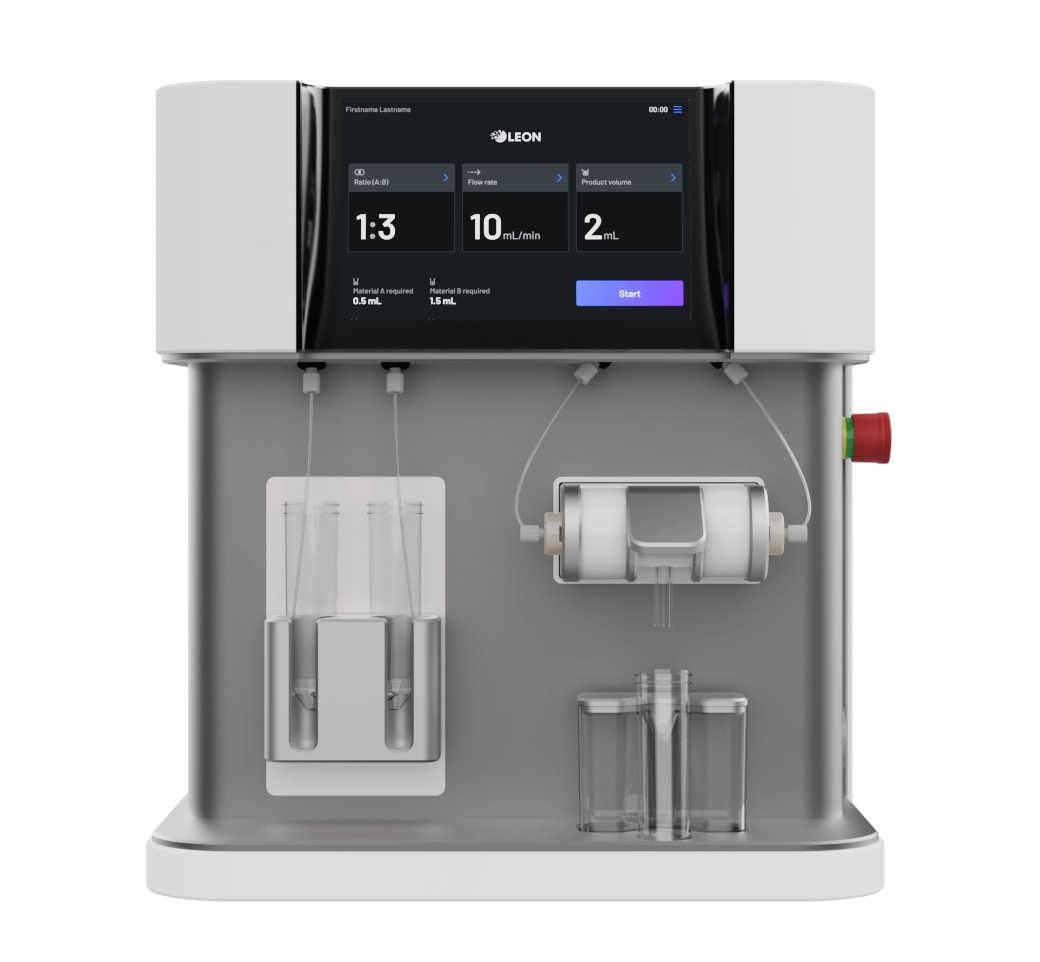

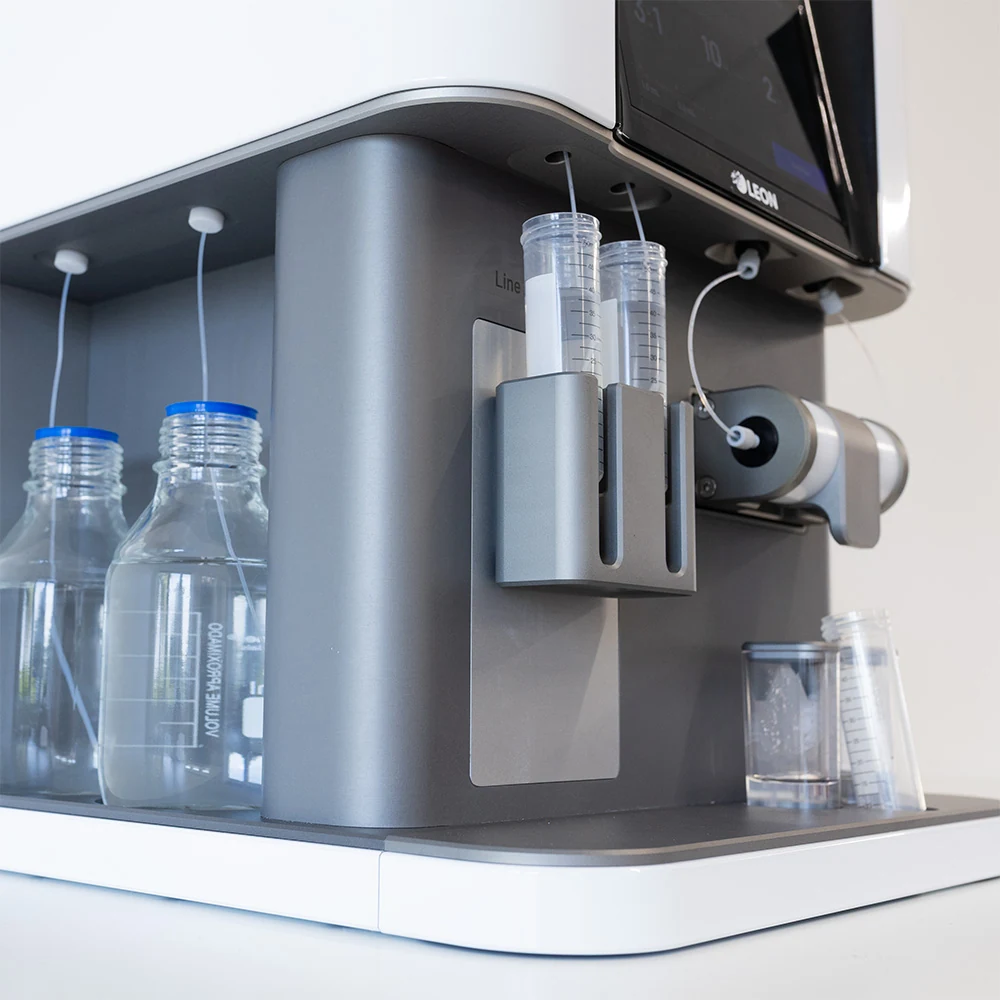

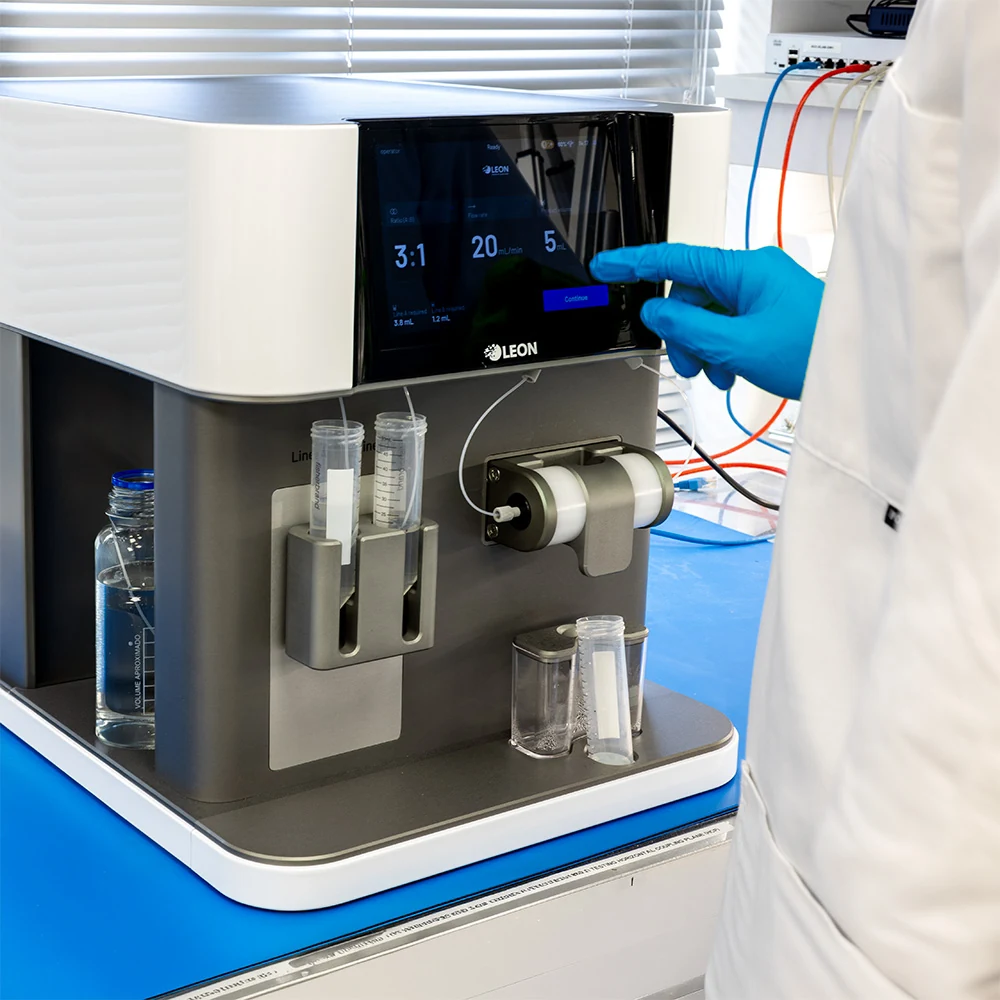

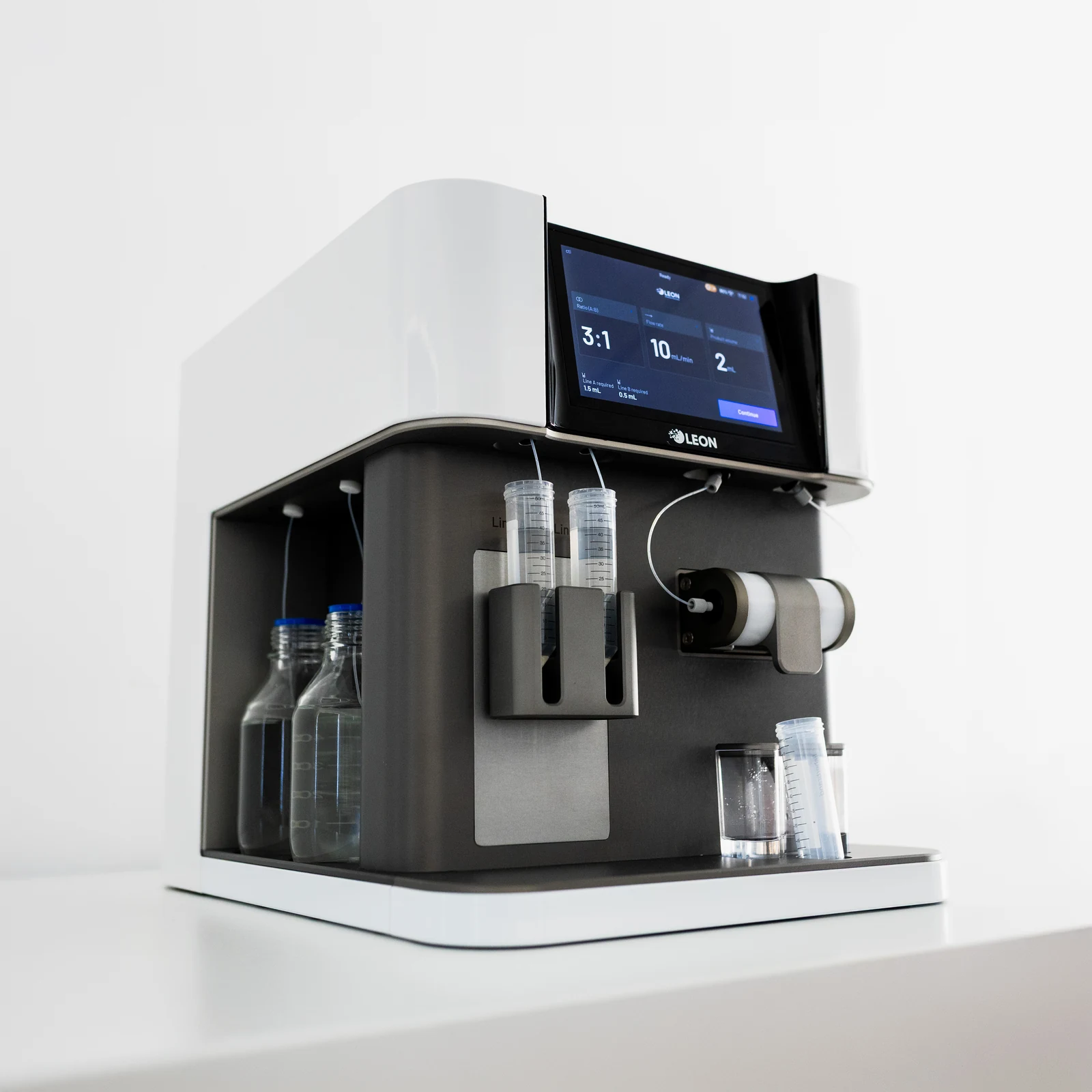

NANOscreen® is a user-friendly system designed for rapid formulation screening and identification of an early-stage product formulation with minimal material losses. The NANOscreen®, augmented by the FR-JET® mixing technology, in combination with our intuitive user interface, enables precise control over all relevant process parameters.
Key Benefits
→Rapid screening and formulation identification
Methods directly transferable to NANOlab® - no redevelopment required
Flow rates <100 mL/min
Batch sizes as small as 0.5 mL
Minimal material losses
Automated waste/sample separation
Fully automated cleaning cycle
User-configurable process parameters
User-defined internal formulation library
Specifications
Technical Specifications
| Application | Discovery, formulation screening, early development |
| Dimensions* | approx. 40 cm x 50 cm x 40 cm |
| Total flow rate | up to 100 mL/min |
| Sample size | 0.5 - 12 mL (FRR = 3:1); 0.5 - 20 mL (FRR = 1:1) |
| No. of inlets | 2 (3rd channel for ILD available) |
| Automation | single sample mode (screening functionality coming soon) |

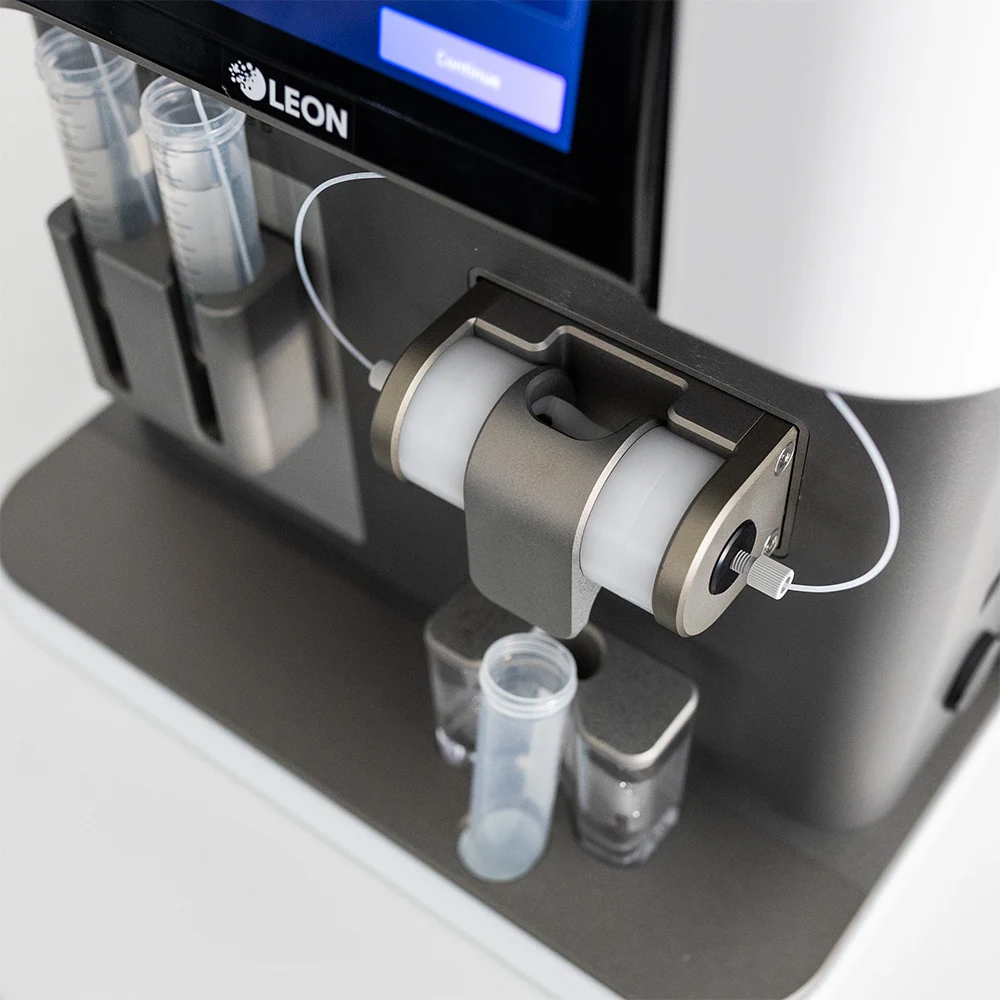

| Mixing technology | FR-JET® (re-useable stainless steel or extended single-use polymer) |
| GMP capability | No |
*All dimensions are width x depth x height
