Start with the right technology and scale with confidence

Benchtop system for process development
and non-clinical studies.

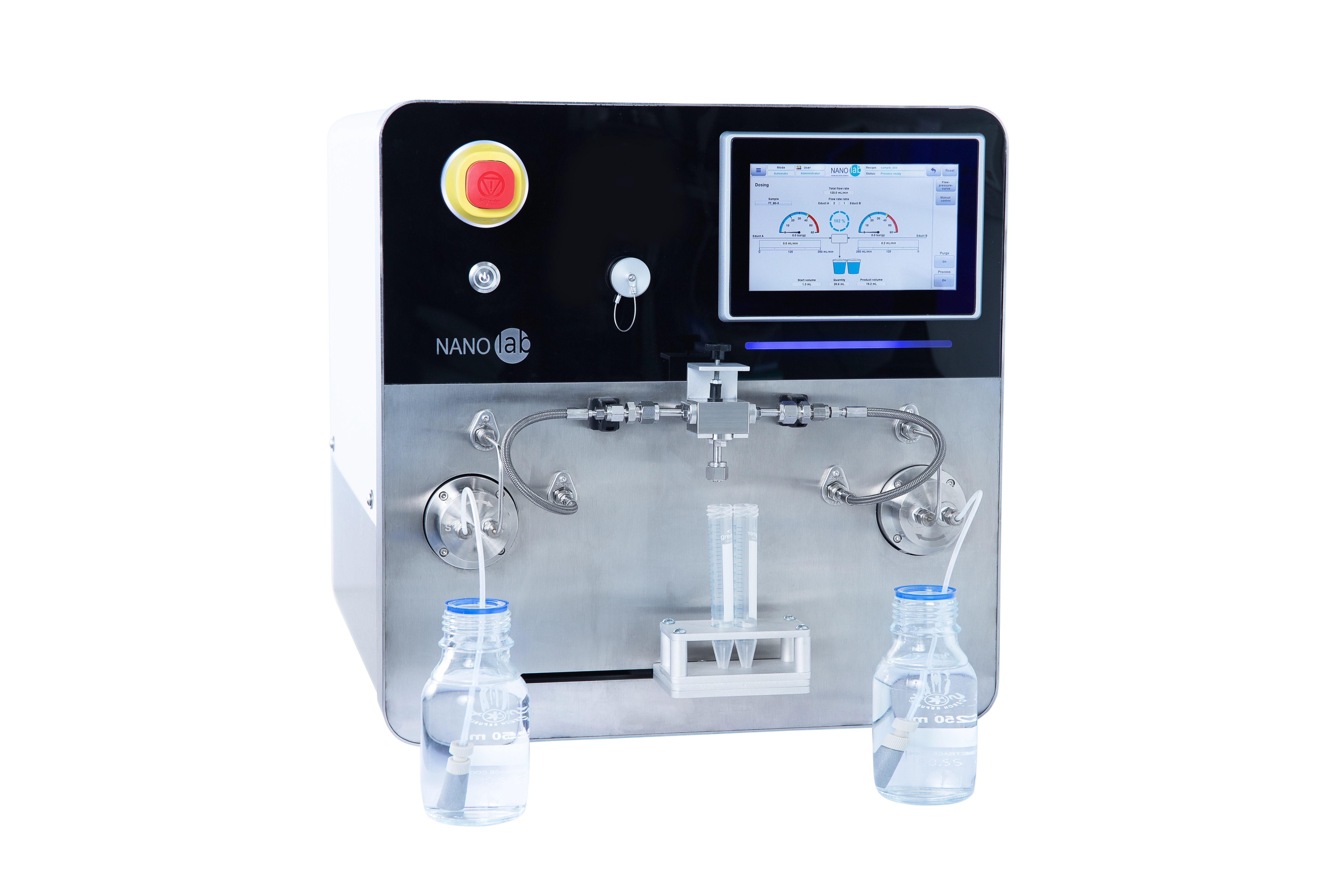

NANOlab® system

Seamlessly transition your initial formulation from NANOscreen® to NANOlab®. The NANOlab® delivers batch sizes as small as 1 mL all the way through to continuous operation. With flow rates ranging from 6-500 mL/min, enabled through precise control of our patented FR-JET® mixing technology, hitting your target nanoparticle specifications for every batch is easy. The process parameters identified using our NANOlab® system can be directly scaled to our GMP-ready NANOme® or NANOus® systems, without the need for intermediate steps or additional equipment. Supports all non-clinical development studies.

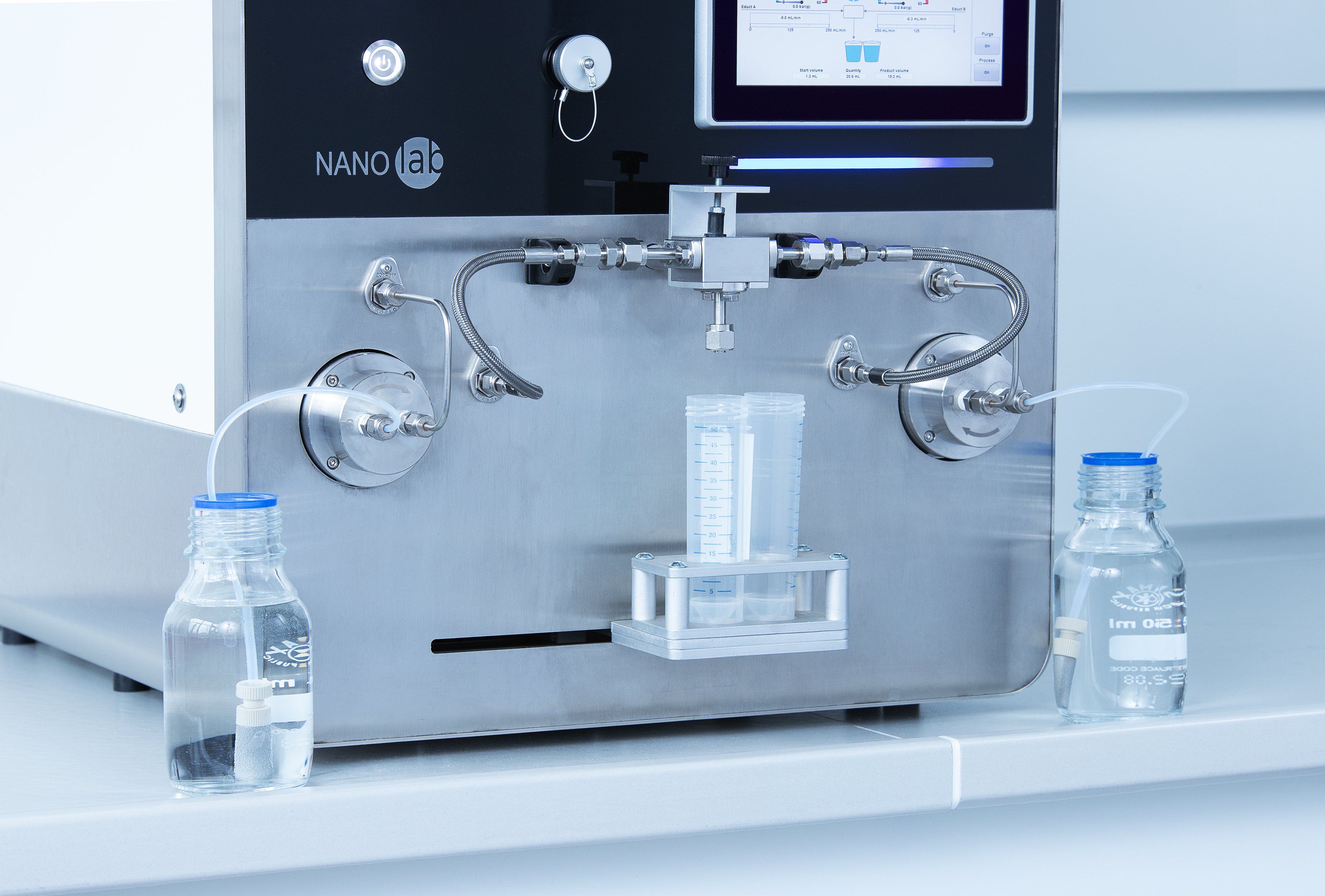

NANOlab® system

Key Benefits

Methods directly transferable to GMP systems NANOme® or NANOus®

Flow rates 6-500 mL/min

Batch sizes from 1 mL

Precisely regulated flow rate with internal flow sensors

In-line dilution (coming soon)

Flexible sampling mechanism: 15 or 50 mL sample tubes and continuous mode for larger batch sizes

Internal, user-configurable process library

An example process development workflow with the NANOlab® system.

NANOlab® example process development workflow — Effect of pinholes, total flow rate, and core size

Technical Specifications

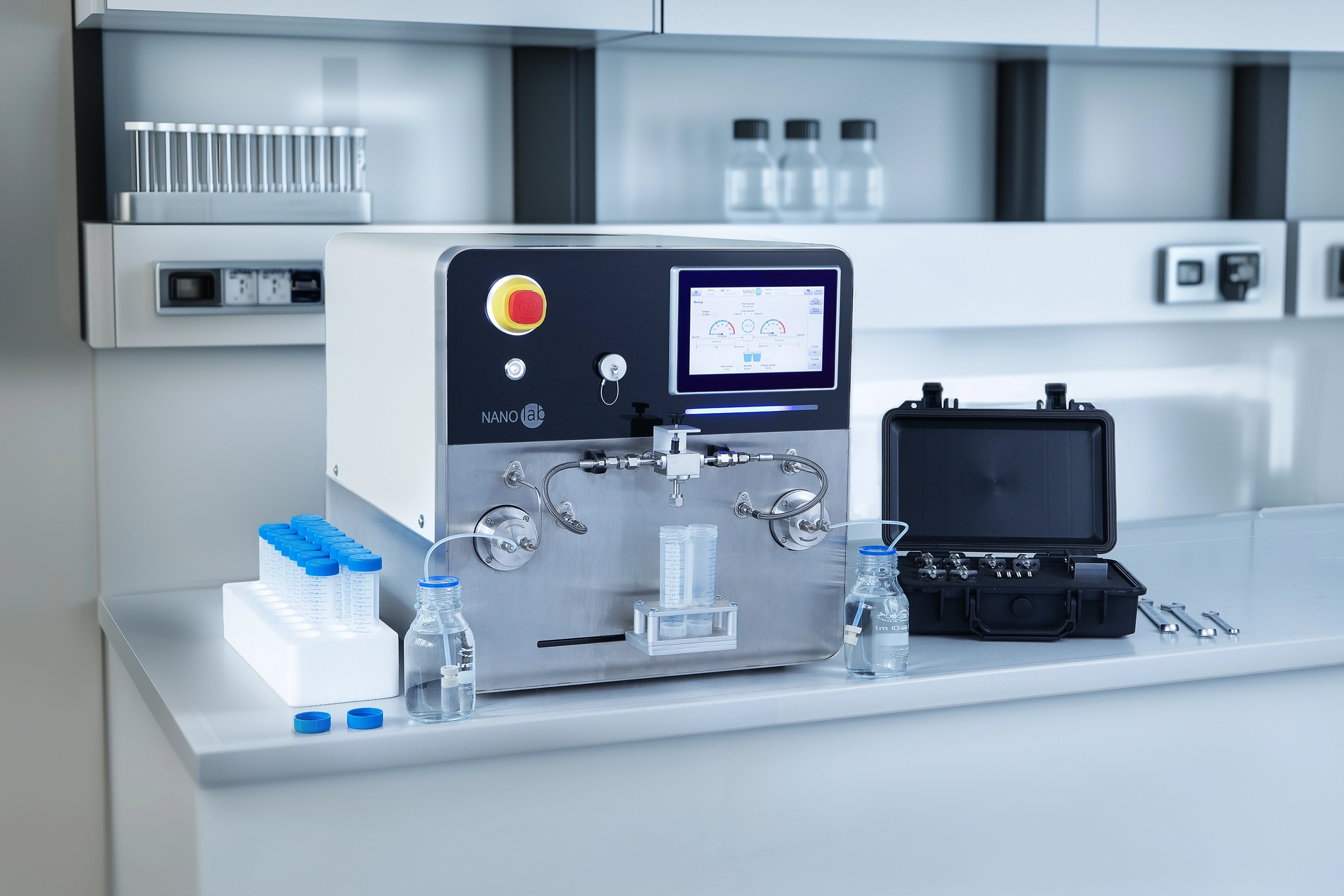

NANOlab® system
ApplicationProcess development & non-GMP manufacturing
Dimensions*approx. 45 cm x 60 cm x 45 cm
Total flow rate6 – 500 mL/min
Batch sizeNo upper limit (continuous)
No. of inlets2 (3rd channel for ILD available)
Mixing technologyFR-JET® (re-useable stainless steel or extended single-use polymer)
Process modeBatch & continuous
GMP capabilityNon-GMP

*All dimensions are width x depth x height
